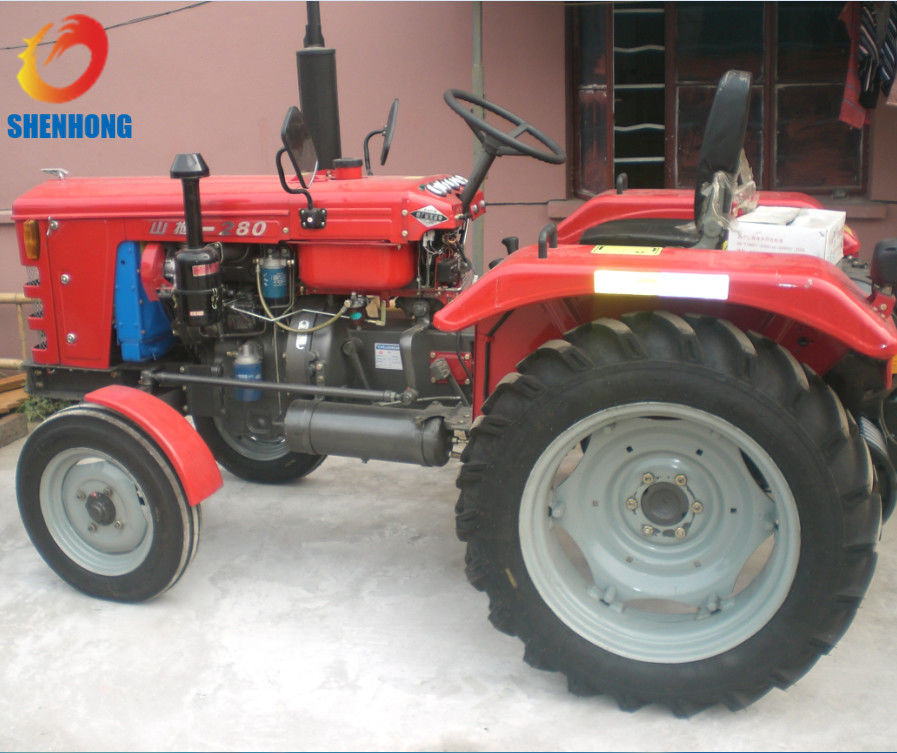

Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting

Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting
Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting

Büyük resim :  Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting En iyi fiyat

Ürün ayrıntıları:
Place of Origin: Jiangsu, China (Mainland)
Marka adı: Shenhong
Sertifika: ISO
Model Number: 280
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: US $1600-4000 / Set
Packaging Details: standard export wooden case
Delivery Time: 15 days after the deposit
Supply Ability: 500 Set/Sets per Month
Detaylı ürün tanımı
Power Source: Diesel engine Application: power construction
Usage: hositing;pulling;lifting Capacity(KN): 40
weight(kg): 1280 Power(KW/rpm): 20.6/2200
Dimensions(mm): 2260*1360*1310 Warranty: 1 year
Bullwheel bottom of groove diameter(mm): 320 Groove number: 6
Vurgulamak:

engine powered winch

,

tel halat vinç

Model 280 Tractor Puller For Pulling in Power Construction



Characteristic:

1, maintain the original driving function. (separate grinding and running separately)
2. The grinding mill is driven by the power output shaft to drive the grinding cylinder.
3. The machine is compact in structure, flexible in operation, flexible in performance and reliable in braking.



Main uses:
1, the power line construction in the retractable wire.
2, the traction of the whole tower erection, also lifting heavy objects.
3, rear can hang trailer transport tools.



Essential technical parameters

Power(KW/rpm):20.6/2200



Bullwheel bottom of grove diameter(mm):Φ320



Groove number:6



Maximum suitable rope diameter(mm):Φ14



Maximum running speed(m/min):59



Dimensions(mm):2660×1360×1310



Weight(kg):1280



Gear Location Reverse
Line Pull(KN) 40 30 20
Speed(m/min) 715 1275 2270 650

Model 280 Tractor Puller Winch for retractable traverse pulling hoisting in power line construction

Please tell us the following information in your enquiry:

1. Engine Power ?

2. Pulling Speed(m/min) ?

3. Pulling capacity?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
