Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Tip: | Tel Halat Gerdirici | Maksimum Uzunluk(mm): | 1210 |
|---|---|---|---|
| Minimum Uzunluk(mm): | 410 | Kapasite (kg): | 1000 |
| Ağırlık: | 3,2 kg | ||
| Vurgulamak: | elektrik teli çekme araçları,tel halat gergi aracı,Cırcırlı Kablo Çekme Aletleri |
||

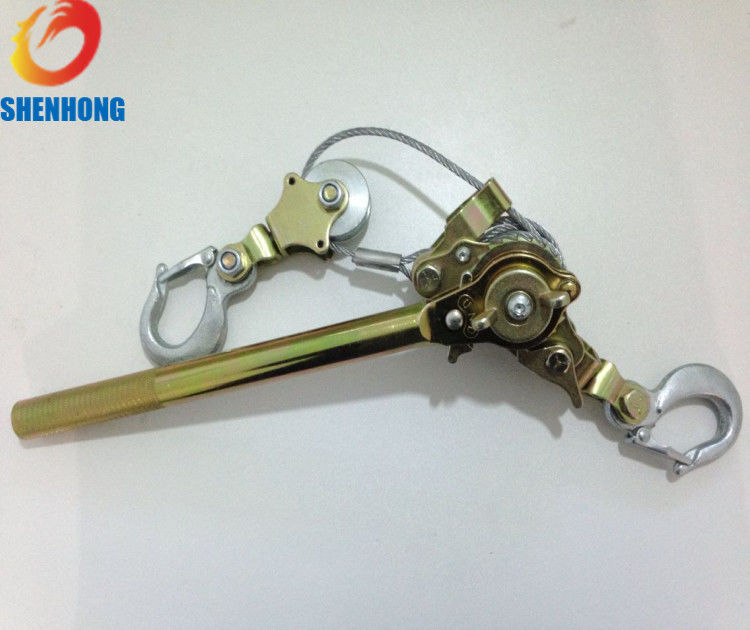

Ratchet Withdrawing Wire Tool Wire Rope Tightener capacity 1000 kg in Line Construction
Introduction
Tight line device is installed in the construction of overhead lines as tension conductors. Use first device on the tight wire or galvanized wire rope loose, and fixed in the cross arm, and with the clamp tool clamping wire, then pulling the special spanner. As the pawl anti-reverse effect, and gradually the rope, or galvanized iron wire on the ratchet drum, so that the wire to tighten. To tighten the wire fixed on the insulator. Then loosen the pawl, so that loose wire or galvanized wire, then release the clamp tool, and finally the wire or galvanized iron wire on the ratchet drum.
Tight line device applications: construction, roads, bridges, metallurgy, mining, slope tunnels, wells and other infrastructure construction management protection of mechanical equipment.
Hand Winch Cable Puller Wire Rope Puller is used in power transmission construction, telecommunications engineering, tighten the wire.
Designed for conductor/cable tensioning applications within the Electricity distribution and Telecommunication industry.
Characteristic
Forward/reverse load holding mechanism
Heavy duty - Quality ratchet mechanism
360º Handle movement
Fast advance mechanism
Supplied with Test Certificate
Data Sheet
| Model | Capacity(kg) | Max Length(mm) | Min Length(mm) | Size of Wire(mm) | Weight(kg) |
| A-1000 | 1000 | 1210 | 410 | 4.5×2300 | 3.2 |
| A-1500 | 1500 | 1400 | 480 | 5×2300 | 4.2 |
| A-2000 | 2000 | 1400 | 480 | 5.5×2300 | 4.3 |
| A-P1500 | 1000(single wire) | 3300 | 480 | 5×3200 | 4.1 |
| A-P1500 | 1500(double wire) | 3300 | 480 | 5×3200 | 4.1 |
| A-3000 | 3000 | 1400 | 480 | 6×2400 | 4.9 |
Features
1. It has small size and light weight and convenient collection and easily carried. Its ability on operate can play its role even in a narrow place.
2. The ratchet puller is made by high quality of Taiwan galvanized wire rope and aluminum alloy pressure head. It’s strong and wearable, not fall off.
3. It is made by high tensile steel plate and the structure is used in high quality integral structure of carbon steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling keying can forward or backward turn. It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
4. With high tensile steel hook with latch, the strength gets greatly improved.
5. Material: High Tensile Carbon Steel
6. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
7. Finish: color zinc plated
