Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Motor: | gasoline | Capacity: | 50KN |
|---|---|---|---|
| Type: | Gas Engine Powered Winch | Usage: | cable pulling |
| Engine Power: | 13HP | Weight: | 220kg |
| Size: | 1200×600×500 | Transmission: | Belt Driven |
| Vurgulamak: | honda gas powered winch,gas powered winches |
||

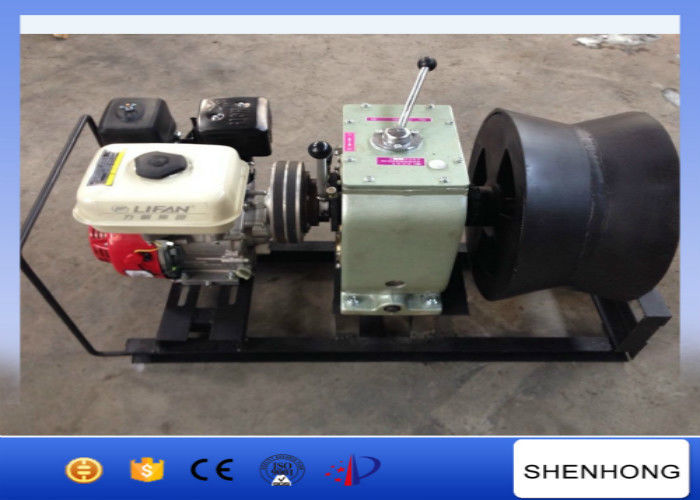

Belt Driven Gas Powered Winches Stringing Wire With 400mm Diameter Cable Roller
Application:
It is used for tower erection,pole setting,stringing wire,old conductor change for new conductor in electrical power line construction.
Features
Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
Light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wild field helps to reduce crop losses.
High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.
Brake:
there are two kinds of brake installment in the machine-the auto clamp-brake and the clutch-drived chain brake.Both of them can play the brake function in clockwise and reverse-clockwise directions.
Hand installment:
if the prime motor doesn’t work well during the working process, you can use the hand installment to help you complete the job.
Lubrication
using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.
Technical Data
| Model Type | Engine Power | Gear | Pulling Speed(m/min) | Line Pull(Ton) |
| JJM5Q |
Gasoline Engine 10HP |
Slow | 14 | 2 |
| Quick | 30 | 1 | ||
| Reverse | 7 |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
