Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min

Ben sohbet şimdi
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

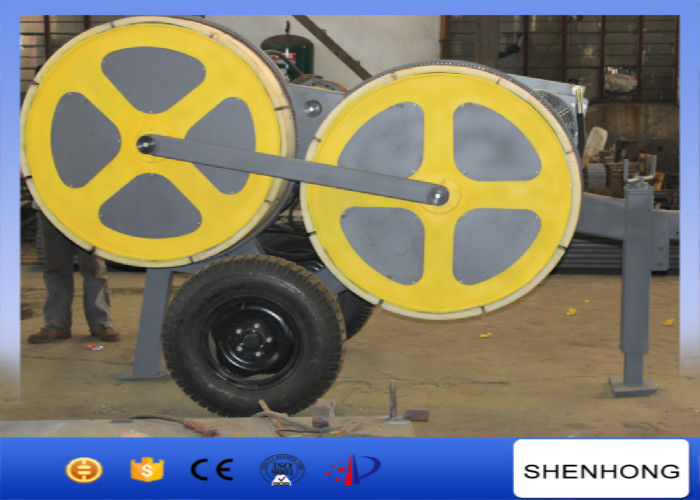

Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min

Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min
Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min

Büyük resim :  Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min En iyi fiyat

Ürün ayrıntıları:
Place of Origin: MADE IN CHINA
Marka adı: SHENHONG
Sertifika: ISO
Model Number: SA-YQ30
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1set
Fiyat: USD17000-2000
Packaging Details: 20" container
Delivery Time: 30 workdays after deposit
Payment Terms: L/C, T/T, Western Union
Detaylı ürün tanımı
Type: Hydraulic Puller Tensioner Load Capacity: 30KN
Overall Size(MM): 3560 ×1600 ×2220 Diameter of tension wheel: 1200mm
Max Pulling Speed(km/h): 5 km/h Max dia of wire: 32mm
Max Tension: 30KN Application: Stringing during overhead line tranmission
Vurgulamak:

hydraulic pulling machine

,

conductor stringing equipment

Conductor Stringing Equipment Hydraulic Puller Tensioner 2200 R / Min​



Technical Data

Model Type YQZ30
Overall Size(MM) 3560 ×1600 ×2220
Weight(KG) 1700
Max Tension(KN) 30
Max Continual Tension(KN) 25
Max Velocity(km/h) 5
Diameter of Tension wheel(mm) 1200
Solt No. of Tension wheel 5
Rated Pulling Force (KN) 30
Max Pulling Speed(km/h) 5 km/h
Max dia of wire Φ32mm
Engine Power 11KW/ 2200 r/min
Voltage 12V



Application

Used to string single conductor, earth wire, OPGW and ADSS optic fiber cable.



Features

Closed hydraulic circuit, infinitely variable tension control.

The max. tension/pull back force for conductor stringing operation can be preset, and the tension force in the line can be read on the tension gauge.

Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

Hydraulic oil cooling system. Bull wheels lined with wear proof MC nylon.

Mounted on trailer with rigid axle for towing at max. speed of 15km/h on site.



Main Components

Diesel Engine: Chinese famous branded water-cooled diesel engine.

Main pump and motor: Sauer-Danfoss-Daikin

Reducer: Dinamic Oil (Italian)

Hydraulic instrucments: (German) Radiator: AKG (German)


Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The machine will be loaded in container and fixed with steel wire rope.

2. The accessory and operation manual will be packed in plywood case.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.



Why choose us

1. High quality and competitive price

2. Leading and biggest manufacture for stringing equipment in China.

3. 25 years of production experience and more than 1000 customers in the country and abroad market. The set of 4 ton puller and 3 ton tensioner have been sold to more than 20 countries.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
