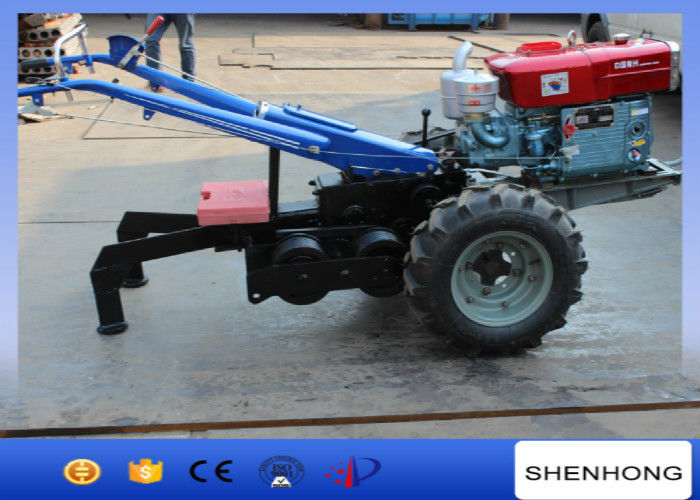

5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction

5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction
5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction 5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction

Büyük resim :  5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction En iyi fiyat

Ürün ayrıntıları:
Place of Origin: MADE IN CHINA
Marka adı: SHENGHONG
Sertifika: ISO
Model Number: JMJ5-2
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: negotiation
Packaging Details: export package
Delivery Time: 15-20 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Detaylı ürün tanımı
azami yük: 50KN Motor: Dongfeng Tip 12 Su Soğutmalı Dizel
Güç: 15hp Max hız: 42m/dak
ırgat: Çift İsim: Kule Montaj Aletleri 5 Tonluk Çift Tamburlu Yürüyen Traktör Vinç
Vurgulamak:

Çift örgü halat

,

dizel beton mikseri

,

iki tekerlekli yürüyen traktör vinç

5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction​





Quick Infomation

1. Suitable for line construction in the torsion free wire rope traction.

2. Euiqped with two seven round drum.groove,traction and conveninet,can protect the steel wire rope

3. Itself behind the walking device can match box carrying heavy loads and other tools.



Features

1. Four gear,forward gear and reverse gear

2. Double drum,seven groove,protect the wire rope

3. Speedy and convenient

4. Easy operation

5. High quality



Technical Data

Model Type Overall Size(mm) Weight(kg) Power Gear Pulling Force(KN) Pulling Speed(m/min)
JMJ-5 2670*1040*1300 650 Dongfeng Type 12 walking tractor Slow 50 9
Mid 27 15
Mid 17 27
Quick 10 42



5 Ton Double Drum Two Wheel Walking Tractor Winch For Electric Power Construction 0
