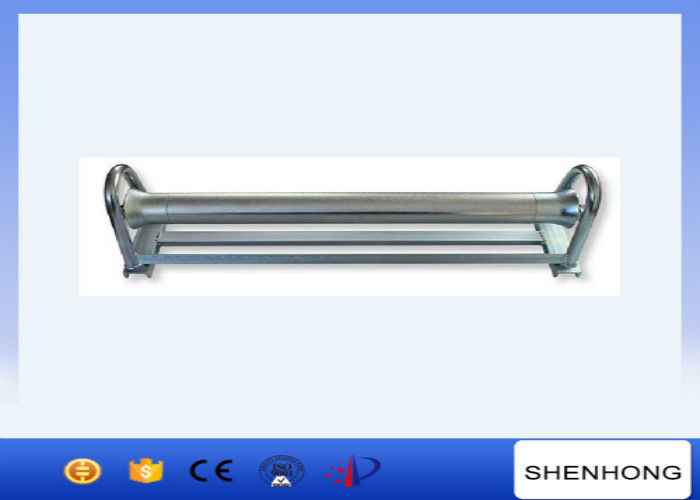

Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm

Ben sohbet şimdi
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm

Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm
Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm

Büyük resim :  Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm En iyi fiyat

Ürün ayrıntıları:
Place of Origin: Jiangsu, China
Marka adı: SHENHONG
Sertifika: ISO
Model Number: DR1
Ödeme & teslimat koşulları:
Minimum Order Quantity: 10pcs
Fiyat: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Detaylı ürün tanımı
Material: Aluminum Application: Avoid cable touching the ground.
Length (m): 1 Weight (kg): 14
Type: Line type Process: Galvanized
Vurgulamak:

wire pulling pulley

,

pulley block with hook

Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm ​





Quick Information

1. with aluminium roller body length 900 mm, galvanized

2. Roller body diameter: 65 mm

3. Clearance under the roller: 90 mm

4. Frame inner width: 170 mm

5. Dimensions: L x W x H 1000 x 200 x 240 mm

6. Weight: 15,0 kg



Data Sheet

Item

number

21291 21292 21293 21294
Model SHC1000 SHC1500 SHC2000 DR1
Length (m) 1 1.5 2 1
Weight (kg) 27.3 30.5 35.5 15
Feature V type ,folded V type ,folded V type ,folded Line type



Note:

1. Used to Avoid cable touching the ground.

2. Steel Roller.



Galvanized Cable Pulling Pulley Draw Off Roller With Aluminium Roller Body Length 900 mm 0
