25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2

Ben sohbet şimdi
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2

25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2
25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2 25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2

Büyük resim :  25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2 En iyi fiyat

Ürün ayrıntıları:
Place of Origin: Jiangsu,China
Marka adı: SHENHONG
Sertifika: ISO
Model Number: CO-630HE
Ödeme & teslimat koşulları:
Minimum Order Quantity: 2pcs
Fiyat: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Detaylı ürün tanımı
Crimping range: 150-630 Crimping force: 25T
Stroke: 25mm Weight: 5.6kg
Package: steel case Crimping type: hexagon crimping
Vurgulamak:

cable lug crimping tool

,

hydraulic lug crimping tool

25 Ton Hydraulic Compression Tool CO-630HE For Cable Connector 150-630mm2​





Tools Introduction

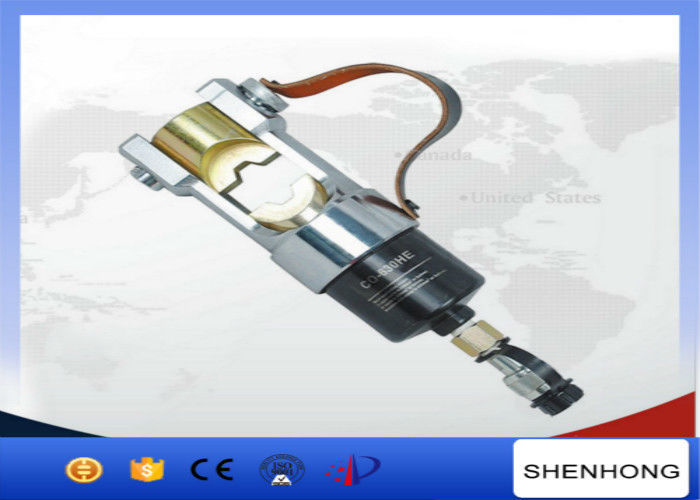

CO-630HE is a Remote Control Hydraulic Crimping Head, works with external hydraulic pump. Capable of crimping Cu/AL cable connectors from 150mm2 to 630mm2. There are total 7 sets standard crimping dies sold with CO-630HE



Tools Specification

1. Application: Crimp Large Size Cable Connectors

2. Crimping Capacity: 150-630mm2 (Hexagon)

3. Standard Dies: 7 Sets 150 / 185 / 240 / 300 / 400 / 500 / 630mm2

4. Crimpng Head: works with external hydraulic pump (700Bar), Our foot pump CFP-700FT is strongly recommended.

5. Bolt Style Head Design for easy dies remove and installation

6. Plastic Case Package for easy carrying and well tool protection

7. Weight: 5.6kgs Size: 260*88*120mm



Data Sheet

Application
Crimp Large Size Cable Connectors
Crimping Capacity 150-630mm2 (Hexagon)
Standard Dies 150 / 185 / Crimpng Head240 / 300 / 400 / 500 / 630mm2
Crimpng Head Crimpng Head(700Bar)
Weight 5.6kgs
Size 260*88*120mm
