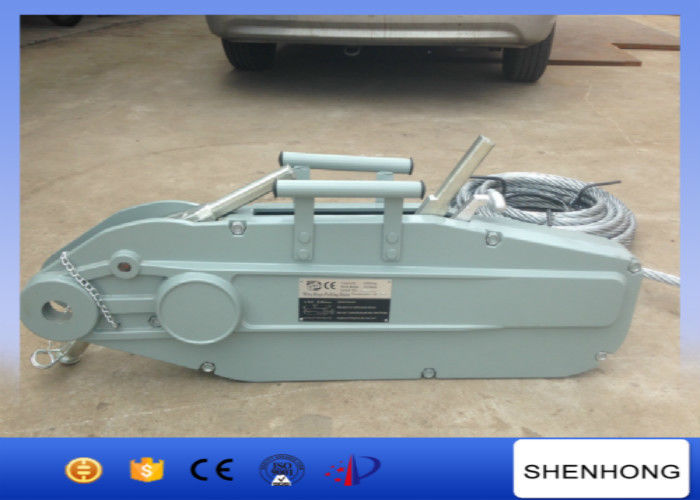

Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch

Ben sohbet şimdi
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch

Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch
Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch

Büyük resim :  Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch En iyi fiyat

Ürün ayrıntıları:
Place of Origin: Jiangsu,China
Marka adı: shenhong
Sertifika: BV,CE,ISO
Model Number: VIT
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 piece
Fiyat: negotiation
Packaging Details: wooden case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Detaylı ürün tanımı
Kapasite: 800-5400kg halat çapı: 8,3-20 mm
Maksimum seyahat yükü: 1200-8000kg Net ağırlık: 6.4-56kg
Uygulama: İnşaat paket: ahşap kasa
Vurgulamak:

elektrik teli çekme aletleri

,

tel çekme aletleri

,

Tirfor Manuel Kablo Çekme Aletleri

Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch



Application

It is used to tighten steel stranded wire and aluminous stranded wire operations in line construction, the free stretch distance is 1m.



Features

1. Equipped with two safty devices, and this guarantees safe operations.

2. Can be used at any working temperature degrees

3. Equipped with a saftey hook, preventing wire rope from coming off while operation



Technical data of Tirfor Manual Wire Rope Pulling Hoist Wire Rope Winch cable pulling tools

Model VIT-800 VIT-1600 VIT-3200 VIT-5400
Rated forward hand power(N) 341 438 438 745
Rated capacity(kg) 800 1600 3200 5400
Rated forward travel(mm) ≥52 ≥55 ≥28 ≥30
Rope diameter(mm) 8.3 11 16 20
Wire rope safty factor load capacity(times) 5 5 5 5
Max travelling load(kg) 1200 2400 4000 8000
Net weight(kg) 6.4 12 28 56
Max outer size(mm)A 426 545 660 930
B 238 284 325 480
C 64 97 116 152
L1(cm)   80 80 68
L2(cm) 80 120 120 112
Packing(L*W*H)(cm) 43*6.4*24 54.5*9.7*29 66*12*35 110*110*73



Tirfor Manual Cable Pulling Tools Wire Rope Pulling Hoist Wire Rope Winch 0



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
