Ürün Ayrıntıları
Place of Origin: Jiangsu,China
Marka adı: Shenhong
Sertifika: ISO
Model Number: SKG
Ödeme ve Nakliye Şartları
Minimum Order Quantity: 5 piece
Fiyat: US $15-200 / Piece
Packaging Details: Export case
Delivery Time: 10 work days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Rated load: |
25KN |
Package: |
Carton |
Type: |
Radial Locking Grip |
Weight: |
3.8kg |
Radial diameter: |
8~20mm |
Application: |
OPGW Construction |
Rated load: |
25KN |
Package: |
Carton |
Type: |
Radial Locking Grip |
Weight: |
3.8kg |
Radial diameter: |
8~20mm |
Application: |
OPGW Construction |

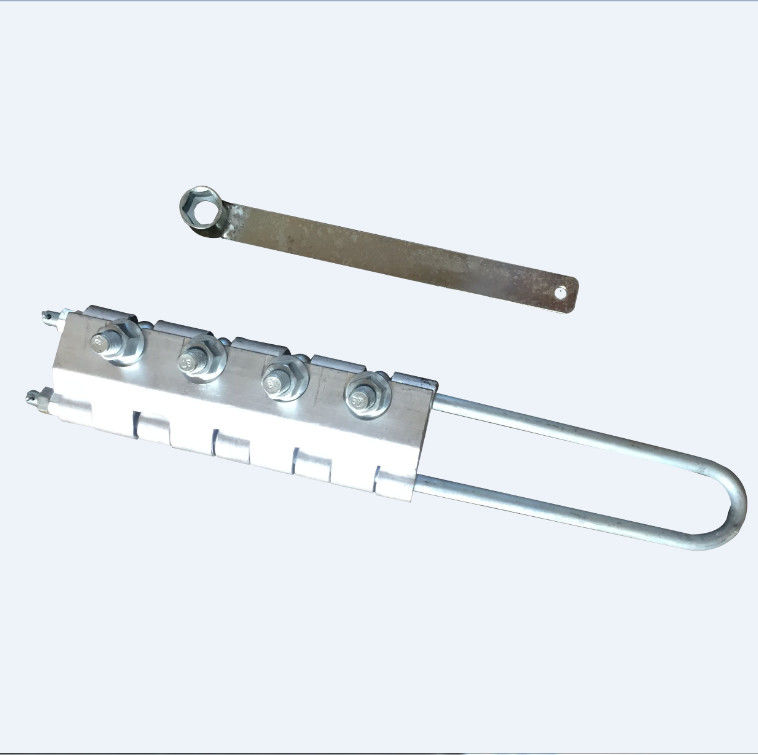

25KN Come Along Clamp Radial Locking Grip Cable Grip for OPGW in 8-20mm
Application
It is used in large section conductor and long span high tension construction occasion,protect conductor effectively.It holds OPGW overhead ground wire.The cable diameter is the same as the size of the jaws to ensure reliable clamping, reduce the pressure on the cable clamp and protect the fiber from the fiber.
Uses: Apply to OPGW construction.
Features: can protect the OPGW effectively.
Technical Data
| Model | Rated load(KN) | Radial diameter(mm) | Weight(kg) |
| SKG-2.5 | 25 | Φ8-20 | 3.8 |
| SKG-4.5 | 45 | Φ20(max) | 5.6 |
