| Product Name: | 2 x 35KN Overhead Line Equipment Hydraulic Cable Puller Tensioner | Maximum linepull (kN): | 180 |
|---|---|---|---|
| Continuous linepull (kN): | 150 | Maximum linespeed (km/h): | 5 |
| Bullwheel grooves number: | 9 | Bullwheel bottom of groove diameter(mm): | 630 |
| Vurgulamak: | hydraulic tensioner,conductor stringing equipment |
||

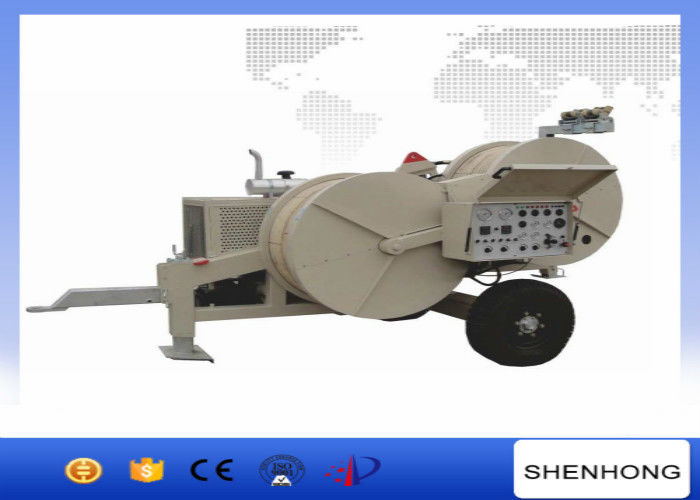

Cable Hydraulic Pulle rTensioner Rexroth Valve 150 Continuous Linepull
Essential parameter
|
Maximum Tension(kN) |
2×35 or 1×70 |
|
Continuous Tension(kN) |
2×30 or 1×60 |
|
Maximum speed (km/h) |
5 |
| Bullwheel bottom of groove diameter(mm) | Φ1200 |
| Bullwheel grooves number |
2×5 |
|
Maximum pullback (kN) |
2×30 or 1×60 |
|
Maximum speedback (km/h) |
2×1.2 |
|
Maximum suitable conductor diameter (mm) |
Φ32 |
|
Engine power /speed (kW/rpm) |
38/2500 |
|
Dimensions (mm) |
4100 × 2100×2600 |
|
Weight(kg) |
4000 |
·Feature :
·Main component
1. Engine :Chinese famous brand water–cooled engine .
2. main pump and main motor : Rexroth (BOSCH )
3. Reducer : RR(Italian) or Rexroth
4. hydraulic valve : Rexroth (BOSCH )
5. radiator :AKG
6. hydraulic instrument :
7. it can choose :Deutz air–cooled engine .
