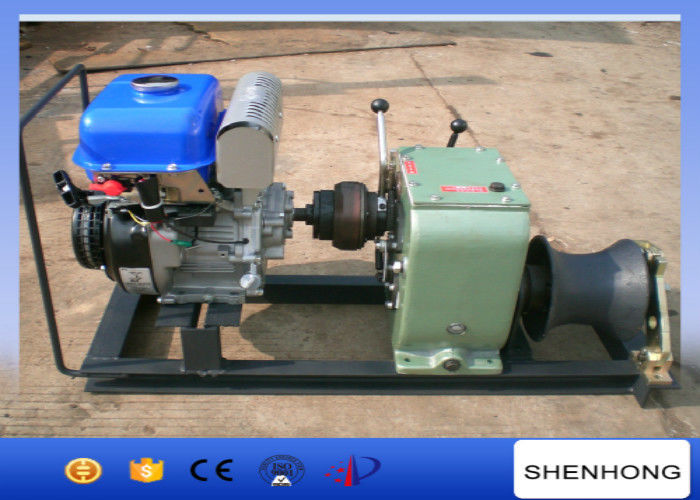

Axle Bar Driven Gas Powered Capstan Winch , 3 Ton Electric Cable Hoist Winch

Ürün Ayrıntıları

Place of Origin: Jiangsu, China

Marka adı: SHENHONG

Sertifika: ISO

Model Number: JJM3B

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 2 sets

Fiyat: Anlaşılabilir

Packaging Details: standard export wooden case

Delivery Time: 7 days after payment

Supply Ability: 500 set/sets per month

En İyi Fiyatı Bulun
Vurgulamak:

honda gas powered winch

,

gas powered winches

Motor:
YAMAHA Gasoline Engine
Capacity:
30KN
Type:
Gas Engine Powered Winch
Usage:
cable pulling
Engine Power:
5.5HP
Weight:
100kg
Size:
840×600×500
Transmission:
Axle Bar Driven Trannsmission
Motor:
YAMAHA Gasoline Engine
Capacity:
30KN
Type:
Gas Engine Powered Winch
Usage:
cable pulling
Engine Power:
5.5HP
Weight:
100kg
Size:
840×600×500
Transmission:
Axle Bar Driven Trannsmission
Axle Bar Driven Gas Powered Capstan Winch , 3 Ton Electric Cable Hoist Winch

Axle Bar Driven Gas Powered Capstan Winch , 3 Ton Electric Cable Hoist Winch




INTENDED USE

Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Application:

Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments- and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this two models of Powered winch are popular with the electric workers.



Brake:

there are two kinds of brake installment in the machine-the auto clamp-brake and the clutch-drived chain brake.Both of them can play the brake function in clockwise and reverse-clockwise directions.



Hand installment:

if the prime motor doesn’t work well during the working process, you can use the hand installment to help you complete the job.



Lubrication

using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.



Technical specification below for your reference:

The Winch Roller can be designed according to your requirement of the diameter and length of the wire rope,

and the detailed technical date will also be changed.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3B Gasoline Engine 5.5HP Slow 5 3
Quick 12 1.8
Reverse 5



Test Before Delviery

Axle Bar Driven Gas Powered Capstan Winch , 3 Ton Electric Cable Hoist Winch 0



Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
