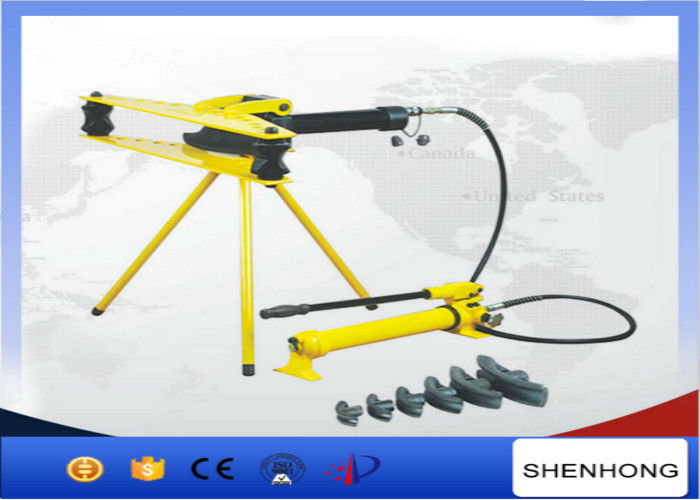

Electric Hydraulic Pipe Bender Manual Pipe Bending Machine DWG-4D

Ürün Ayrıntıları

Place of Origin: MADE IN CHINA

Marka adı: SHENGHONG

Sertifika: ISO

Model Number: DWG-4D

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1pc

Fiyat: Anlaşılabilir

Packaging Details: plywood case

Delivery Time: 10 days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100sets/week

En İyi Fiyatı Bulun
Vurgulamak:

hydraulic compression tool

,

hydraulic lug crimping tool

Max.Working pressure:
63 MPa
Stroke:
420mm
Bend angle:
π/2≤α<π
Outer diameter:
21.3-108 mm
Thickness:
2.75-6.0 mm
Weight:
180kg
Max.Working pressure:
63 MPa
Stroke:
420mm
Bend angle:
π/2≤α<π
Outer diameter:
21.3-108 mm
Thickness:
2.75-6.0 mm
Weight:
180kg
Electric Hydraulic Pipe Bender Manual Pipe Bending Machine DWG-4D

Electric Hydraulic Pipe Bender Manual Pipe Bending Machine DWG-4D





Advantage

1. Simple operation, convenient maintenance, for construction, chemical industry, water, oil, coal and other industries to provide the ideal pipe bending tools.

2. Rely on hydraulic cold bending operations of hydraulic tools. We offer a wide range of hydraulic pipe bending machine that are used for pipe bending purpose in various industries. It is designed for common water pipe,conductor pipe,gas pipe,thick steel pipe and so on.

3. In addition to their precision, toughness and variety. Our pipe bending machines offer these great features. Consumables can be changed easily.



Specification

Model SWG/DWG-2A SWG/DWG-3B SWG/DWG-4D
Max.Working pressure 45/63MPa 59/63 MPa 63 MPa
Stroke 250mm 320mm 420 mm
Bend angle π/2≤α<π π/2≤α<π π/2≤α<π
Bend radius 3D-4D 3D-4D 3D-4D
Outer diameter 21.3-60mm 21.3-88.5 mm 21.3-108 mm
Thickness 2.75-4.5mm 2.75-6.0 mm 2.75-6.0 mm

Outer diameter

X

thickness

21.3×2.75,26.7×2.75

33.5×3.25,42 ×3.25

48×3.5,60×3.5mm

21.3×2.75 ,26.7×2.75

33.5×3.25,42×3.25

48×3.5,60×3.5
75.5×3.75 ,88.5×4.0 mm

21.3×2.75,26.7×2.75

33.5×3.25,42×3.25

48×3.5,60×3.5
75.5×3.75,88.5×4.0

108×4.5 mm

Weight 50/82kg 120/150 kg 150/180 kg
Dimension 750x390x230mm 960×460×315 mm 1210x500x315 mm
