| Motor: | Elektrik motoru | Line pulling(KGS): | 700 |
|---|---|---|---|
| Ağırlık(kg): | 150 | Çekme Hızı(m/dak): | 8 |
| Büyük boy boyut (mm): | 950*500*400 | Kablo Çapı(mm): | Φ30 - 180 |
| Vurgulamak: | tel kurulum araçları,kablo kurulum ekipmanları,Elektrikli Yeraltı Kablo Kurulum Aletleri |
||

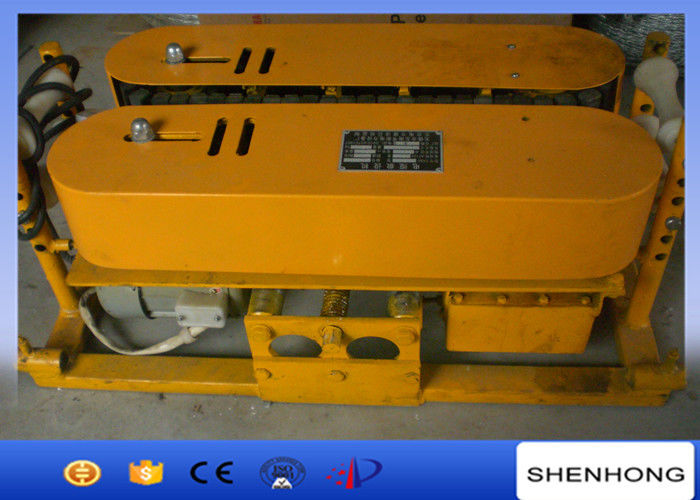

Electric Underground Cable Installation Tools Cable Belt Conveyor DSJ - 150
Cable Belt Conveyor which we manufactured, is the ideal machine of cable transmission used in power,petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.
It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.
Application
The cable pulling machine is a middl motor machine,laying large diameter power cable and communication cable.
Feature
1.Drived by double vertical shaft.and used the hauling capacity and gravitation separately on two directions of the cable to protect the insulation layer of high voltage cable.
3.The cable pass through the hauling machine by hauling cpapacity of multi-caterpillar.The machine is provided with positive or resersing power switch,high-low adjustable roller.The upper of machine can be provided with capstan,using as a small power tractor.
4.In addtion,according to the requirement of the user,we can also provide relative prouct--electrical control system:main control case,branch control case and wire winding wheel ect.
Advantages
1. Saving a lot of labor
2. Improving working conditions
3. Reducing labor intensity
4. Improving work efficiency
5. Ensuring safety
Technical Data
| Model Type | DSJ-150 |
| Line pulling(KGS) | 700 |
| Pulling Speed(m/min) | 8 |
| Electric motor | 1.1KW *2 |
| Oversize dimension | 950*500*400 |
| Weight(KGS) | 150 |
| Cable diameter | Φ30 - 180 mm |
| Transimission | I=45 |
| Rubber sheet thickness | 25mm |
