Ürün Ayrıntıları
Place of Origin: Jiangsu, China
Marka adı: SHENHONG
Sertifika: ISO
Model Number: VIT
Ödeme ve Nakliye Şartları
Minimum Order Quantity: 2 sets
Fiyat: Anlaşılabilir
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Şart: |
Yeni |
askı tipi: |
Tel halat |
Kullanım: |
sıkma |
Ağırlık (kg): |
3.2-4.9 |
Maksimum Uzunluk(mm): |
1210-3300 |
Minimum Uzunluk(mm): |
410-480 |
Şart: |
Yeni |
askı tipi: |
Tel halat |
Kullanım: |
sıkma |
Ağırlık (kg): |
3.2-4.9 |
Maksimum Uzunluk(mm): |
1210-3300 |
Minimum Uzunluk(mm): |
410-480 |

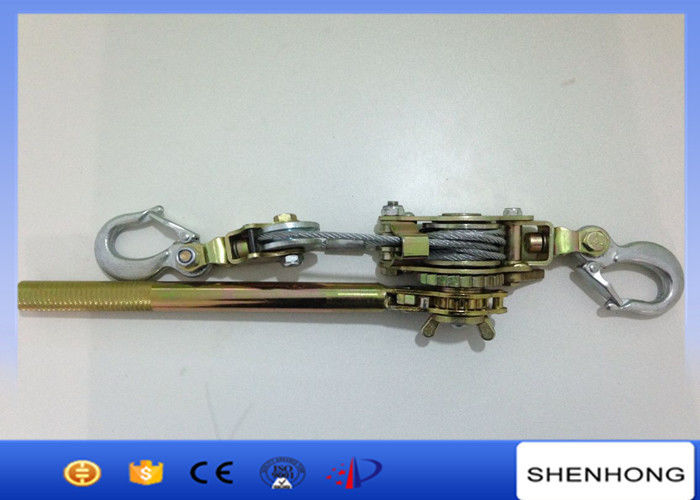

10 - 30 KN Wire Rope Tightening Tool Hand Ratchet Tightener Large Drum Hub
Application
This series of hoist is mainly used in the large and middle sized concrete, steel structure and mechanical equipment installation and dismantling
The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf and road and bridge
Ratchet Cable Puller Winch is used in power transmission construction, telecommunications engineering, tighten the wire.
Designed for conductor/cable tensioning applications within the Electricity distribution and Telecommunication industry.
2. Self-activating automatic brake hold the load securely when crank handle is released
3. Strap/steel cable/wire rope available
4. Safety guard cover available
5. Top quality with competitive price
6. Widely used in the double beam bridge crane and gantry crane
7. Easy to install and high quality
8. Compact structure and reasonable design
9. Overload protection,shock protective, explosion-proof performance
Technical Data
| Model | Capacity(kg) | Max Length(mm) | Min Length(mm) | Size of wire(mm) | Weight(kg) |
| A-1000 | 1000 | 1210 | 410 | 4.5×2300 | 3.2 |
| A-1500 | 1500 | 1400 | 480 | 5×2300 | 4.2 |
| A-2000 | 2000 | 1400 | 480 | 5.5×2300 | 4.3 |
| A-P1500 | 1000(single wire) | 3300 | 480 | 5×3200 | 4.1 |
| A-P1500 | 1500(double wire) | 3300 | 480 | 5×3200 | 4.1 |
| A-3000 | 3000 | 1400 | 480 | 6×2400 |
4.9 |
