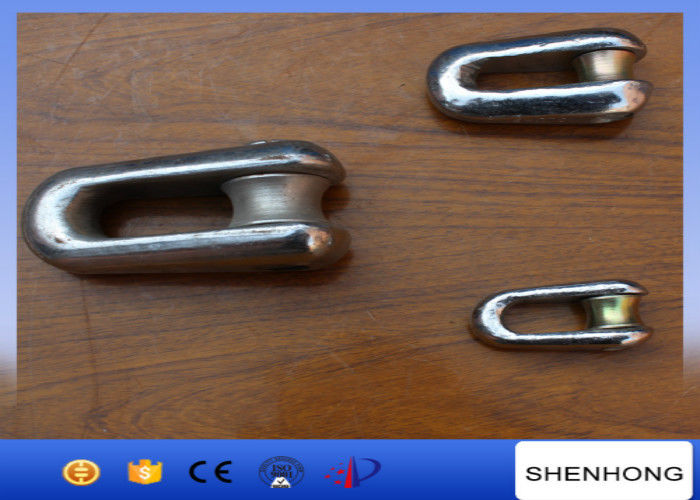

SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load

Ben sohbet şimdi
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
Çin SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD Sertifikalar
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load

SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load
SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load

Büyük resim :  SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load En iyi fiyat

Ürün ayrıntıları:
Place of Origin: MADE IN CHINA
Marka adı: SHENGHONG
Sertifika: ISO
Model Number: SLU-8
Ödeme & teslimat koşulları:
Minimum Order Quantity: 5pcs
Fiyat: USD10-20
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50pc/day
Detaylı ürün tanımı
Tip: Sabit Mafsallar Uygulama: pilot tel halatı bağlamak ve çekme halatını iletken kasnakları üzerinden geçirmek için, hidrolik çek
Nominal yük: 80KN Ağırlık: 1.1kg
Satış noktası: Yüksek güç Malzeme: Alaşımlı çelik
Vurgulamak:

elektrik teli çekme aletleri

,

tel çekme aletleri

,

U Şekli Sabit Eklemler Anti Viraj

SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load​





Quick Infomation

1. Modle SLU-8

2. Rated Load:80KN

3. Weight 1.1kg



Data Sheet

Item No.
Model
Dimension of Connector (mm)
Rated Load (KN)
Weight (kg)
A
B
C
D
E
17111
SLU-1
36
68
18
14
24
10
0.2
17112
SLU-3
37
76
20
17
28
30
0.2
17113
SLU-5
50
98
23
19
43
50
0.6
17114
SLU-8
58
120
28
25
52
80
1.1
17115
SLU-10
59
126
30
26
54
100
1.2
17116
SLU-13
61
134
32
27
56
130
1.2
17117
SLU-15
63
138
37
28
58
150
1.4
17118
SLU-25
80
178
44
35
72
250
3.0
Application
The pilot wire connectors are specially designed and made to connect the pilot wire rope, and pulling rope to pass over the conductor pulleys, bull wheels of hydraulic puller or puller-tensioner. It is processed from high strength forged steel, and galvanised. The special profile minimizes the overload on the rope spliced eyes during the passage.



SLU-8 U Shape Pilot Wire Rope Connectors Fixed Joints Anti Bend For Pulling 80KN Rated load 0
